SK320-6E SK330-6E SK350-6E Swing Motor Seal Kit LC15V00003R300 Standard Size

Name: SK3206E SK3306E SK3506E Swing Motor Seal Kit LC15V00003R300 Standard Size
Brand: HQPA/OEM
Price: 1 USD

SK320-6E SK330-6E SK350-6E Swing Motor Seal Kit LC15V00003R300 Standard Size Manufactures

Brand Name : HQPA/OEM

Model Number : swing motor seal kit LC15V00003R300

Certification : ISO9001

Place of Origin : CHINA(MAINLAND)

MOQ : 1 SET

Price : negotiation

Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P

Supply Ability : 500 Sets per Week

Delivery Time : 3-5 days after payment received(public holiday excluded)

Packaging Details : PP bag inside, carton box outside

Part Number : LC15V00003R300

Application : Excavator SK320-6E SK330-6E SK350-6E

Standard size : It is standard size.

Packing : Normal packing with PP bag inside, carton box outside

Loading Port : HUAGNPU,China (Mainland)

Terms of Payment : Western Union, T/T, Paypal etc.

Contact Now

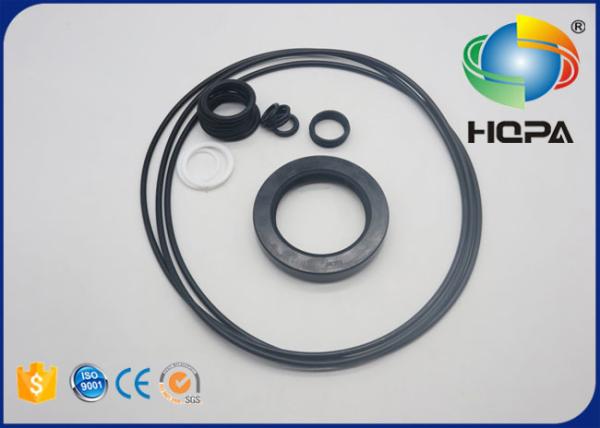

SK320-6E SK330-6E SK350-6E swing motor seal kit LC15V00003R300

swing motor seal kit LC15V00003R300
Name:	SK320-6E SK330-6E SK350-6E swing motor seal kit LC15V00003R300
Part Number:	LC15V00003R300
Material:	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ to be choosed
Brand	HQPA/OEM are welcome
Brand	HQPA/OEM are welcome
Size:	Standard size
Conventional color:	Black+Blue+Brown+White+Yellow+Green
Product performance:	Sealing, thermal insulation, heat resistance, fire prevention, shockproof, waterproof, sound insulation
Application:	EXCAVATOR SK320-6E SK330-6E SK350-6E
Packing:	PP bag inside, carton box outside

Related parts:

Part No	Parts name	Part No	Parts name
LC15V00003F1	HYDRAULIC MOTOR	LQ15V00001S984	PLUG
LC15V00003F2R	REMAN-HYD MOTOR	LQ15V00001S985	PLUG
LC15V00003F2C	CORE-MOTOR HYDRAULIC	ZE82T08000	PLUG
YN22V00014F4	VALVE	ZE82T12000	PLUG
ZD12G03000	O-RING	LC15V00003R100	REPAIR KIT
YN20V00004F1	VALVE	LC15V00003R200	HYDRAULIC VALVE
2441U952S101	SHAFT	LC15V00003R300	SEAL KIT
2441U784S106	SPACER	24100J16661F4	HYDRAULIC MOTOR
YZ15V00003S111	BLOCK	2410J549	FINGER ASSY.
2441U784S113	BUSHING	2418P27419	SLEEVE
2441U784S114	SPRING	2418R597D25	LOCKING RING
2441U784S116	PUSH ROD	2418T24206	PLATE
2441U784S117	SPACER	ZD11G14000	O-RING
2441U784S118	SPACER	2418N3633	RETAINER
YZ15V00003S123	PLATE	ZS23C12040	SCREW
2441U784S124	PLATE	2418T22950	SPACER
LC15V00003S131	PLATE	R25P0047D12	BEARING
LC15V00003S301	CASE	2414J2542	BEARING ASSY
2441U784S304	BODY	2418T22951	SPACER
LC15V00003S351	PLUNGER	25Z494D16	BEARING
LC15V00003S355	SPRING	ZR16X12000	SNAP RING
YB15V00003S390	PLATE	2418T22971	SPACER
2437U407S983	RIVET	2413J382	DIFF. SPIDER
2441U784S401	SCREW	2401P1387	SUN GEAR
ZR16X05000	RING	2401J152	RING GEAR
LQ15V00001S013	SNAP RING	2413N491F1	SPIDER
ZR26X11000	LOCKING RING	2418T22970	SPACER
ZR26X06200	SNAP RING	2401P1388	SUN GEAR
2441U549S443	ROLLER BEARING	ZS13C10025	CAPSCREW
2441U952S444	NEEDLE BEARING	2418T22949	LOCKING PLATE
2441U667S466	PLUG	2410T493	SHAFT
LC15V00003S469	PLUG	2401P1393	PINION
ZD12G11000	O-RING	2425R221	BEARING ASSY
2441U952S472	O-RING	2418T22960	THRUST WASHER
ZD12P01100	O-RING	2401P1394	PINION
ZD12P03400	O-RING	2425R218	NEEDLE BEARING
2441U952S491	GASKET	ZR16X06500	SNAP RING
YZ15V00003S702	KIT	ZS83C20020	SCREW
2415U188S725	O-RING	2420T6698D1	PIPE
2441U952S707	O-RING	ZG31U12000	ELBOW
LB15V00011S712	SPRING	2418Z1448	SEAL
2441U784S742	CLUTCH PLATE	ZR16X04500	RING
2441U784S743	PLATE	24100J13528R100	REPAIR KIT
LQ15V00001S982	PLUG	LQ15V00001S983	PLUG

We also have the following seal kit for your reference.

Boom cylinder seal kit

Arm cylinder seal kit

Bucket cylinder seal kit

Blade seal kit

Swing device seal kit

Travel device seal kit

Swivel joint seal kit

Center joint seal kit

Track adjuster seal kit

Chain seal kit

Seals for bucket cylinder

Seals for arm cylinder

Seals for boom seal kit

Front idler seal

Chain adjuster seal

Level control seal

Travelling motor seal

Retory pump seal

Hydraulic pump seal
