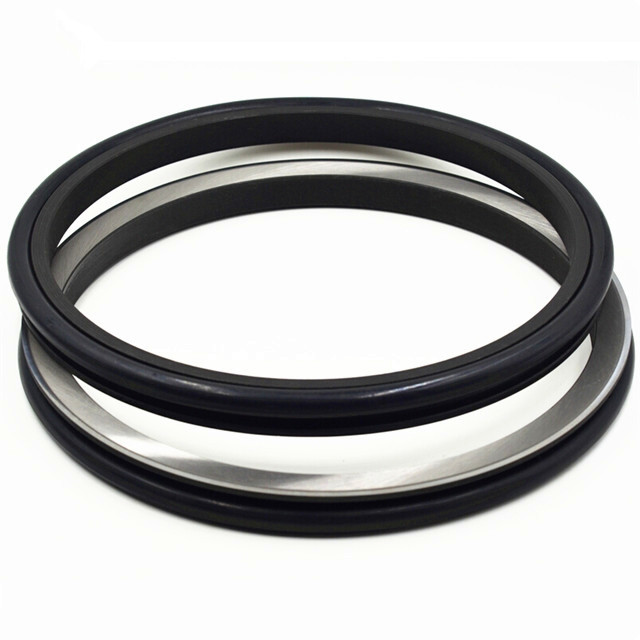

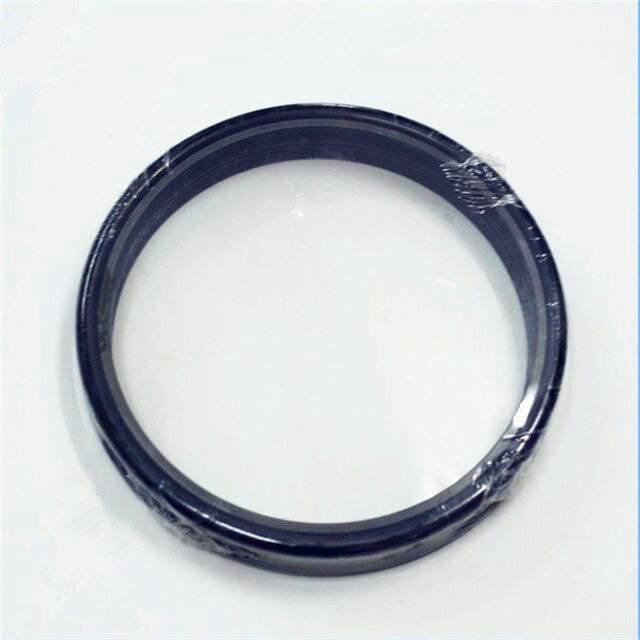

Forging & Casting Floating Oil Seal 6Y-0859 With Haigh Harnness HRC58-62

Product Categories
Guangzhou Sonka Engineering Machinery Co., Ltd.
Contact Now

Forging & Casting Floating Oil Seal 6Y-0859 With Haigh Harnness HRC58-62

  • 1
  • 2
  • 3

Brand Name : HQPA/OEM

Model Number : 6Y-0859

Certification : ISO9001

Place of Origin : CHINA(MAINLAND)

MOQ : Negotiation

Price : Negotiable

Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P

Supply Ability : 500 Sets per Week

Delivery Time : 3-5 days after payment received(public holiday excluded)

Packaging Details : PP bag inside, carton box outside

Name : Floating Oil Seal

Part No. : 6Y-0859

Lifetime : 5000Hours/8000hours

Hardness : 58-62HRC/62-68HRC

Material : 100cr6/Gcr15/E52100/534A99/SUJ2

Process : Forging & Casting

Warranty : 18 months

Application : Agriculture / Mining industry

Contact Now

05903811 Rotary Oil Shaft Seal , Hydraulic Motor Floating Ring Seal

  • The hardness of Floating Oil Seal is HRC58-62 , the working face precision within 0.015um.
  • Flatness up to 0.1um-0.2um ,the lifetime is more than 4,000HRS.

- The metal rings

Surface finish / Roughness ≤ Ra0.2μm
Face finish ≤ Ra0.015μm
Pressure ≤ 0.3MPa
Forged/Casting line speed 2m / s & 3m / s
Hardness 58 - 62 HRC
Temperature -100 ~ 200 °C

- The rubber o ring

Shore hardness 60 ° ~ 65 °
Minimum tensile strength 11MPa
Minimum elongation at break 300%
Flexible change ± 5 °
permanent deformation ≤ 12%
Application
-Farm, construction, earthmoving, coal mining machinery
-Excavator, bulldozer, tractor, cranes, forklift, Heavy truck, backhoe
-Undercarraige, hydraulic motor, travel motor, gearbox axle, wheel hub,tunneling

Method of installation:

1.Usingspecialized equipment installation: The pressure will apply to the O-ringdirectly. As shown, the special tool is placed between the metal hole ring and the rubber ring, towards the seat hole, the rubber ring is pressed evenly into the hole.

2. Other methods: An auxiliary O-ring is fixed between the sealing surface of the floating oil seal and the C-ring (as shown). The floating oil seal ring is applied equally by pressure and auxiliary O-ring braces. Sealing the O-ring to ensure other mounting positions.

Forging & Casting Floating Oil Seal 6Y-0859 With Haigh Harnness HRC58-62

Forging & Casting Floating Oil Seal 6Y-0859 With Haigh Harnness HRC58-62

OEM covers

Model OEM Codes
Komatsu

195-30-00302, 154-30-00831 , 141-30-00616 , 150-27-00017, 207-27-0001, 130-27-00140, 130-27-0001, 14X-27-00101, 150-27-0002, 170-27-00020, 423-33-00020, 17M-27-00101, 287-33-00010, 425-33-00110, 568-33-00016, 209-27-00160, 141-27-00010, 130-27-B0100, 180-27-00021, 175-27-00121,

140-30-00040 , 130-27-00010 , 150-30-00035 , 170-27-00010...
Kobelco

R45P0018D, R45P0018D6, 45P0018D18, R45P00018D9,R45P0018D25,

R45P0018D12, R45P0018D27, R45P0018D13, R45P0018D14, R45P0018D15, R45P0018D16, R45P0018D18, R45P0018D29, R45P0018D21, YN53D00008S023, R45P0018D22, R45P0018D28...
CAT 1M8746, 9W7225, 9W7220, 8E5609, 8E 5610, 9W 7232, 2M 2858, 9W 7223, 9W 6649, 1M 8747, 9W 6647, 9W 6648, 6V2733, 9W7233,1M 8746, 2P 3395, 1P 7249, 5P 7147, 3P 0433, 5P 9120, 9W 6645,9W 6666, 5K 1078, 9G 5314, 5M 1176, 9W 6674, 9G 5317, 9W7201...
Hitachi

4283635, 4176379 , 4177260 , 4082631, 4642180, 4110363, ES-110,

4110362, 4153732, 4508193, ES-209, 4114753, 4514259, ES-250, 4179741, 4066695, 4138544, 4350347, 4082698, ES-56, ES-64...

Advantage
1, Competitive Pricing, 30% - 50% lower than the original parts
2, ISO certified Products
3, Experienced team with years of knowledge
4, In-House engineering and Design Capabilities
5, Just-in-time Inventory Programs for OEM/OES
6, MOQ 1 Set
