CAT Duo Cone Seal Replacement , Forging 8P-1251 O Ring Oil Seal

Product Categories
Guangzhou Sonka Engineering Machinery Co., Ltd.
Contact Now

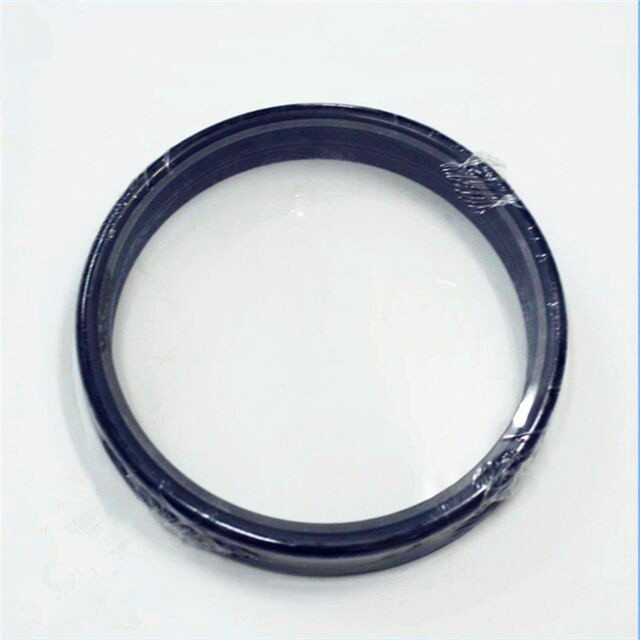

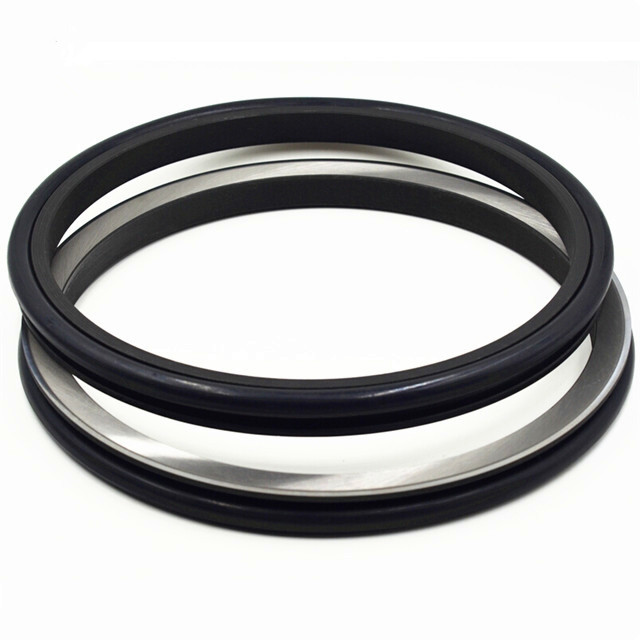

CAT Duo Cone Seal Replacement , Forging 8P-1251 O Ring Oil Seal

  • 1
  • 2
  • 3

Brand Name : HQPA/OEM

Model Number : 8P-1251

Certification : ISO9001

Place of Origin : CHINA(MAINLAND)

MOQ : Negotiation

Price : Negotiable

Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P

Supply Ability : 500 Sets per Week

Delivery Time : 3-5 days after payment received(public holiday excluded)

Packaging Details : PP bag inside, carton box outside

Name : Duo Cone Seal

Part No. : 8P-1251

Lifetime : 5000Hours/8000hours

Hardness : 58-62HRC/62-68HRC

Material : 100cr6/Gcr15/E52100/534A99/SUJ2

Process : Forging & Casting

Warranty : 18 months

Application : CAT

Contact Now

CAT Duo Cone Seal Replacement , Forging 8P-1251 O Ring Oil Seal

Duo Cone Seal Application

-- Farm, construction, earthmoving, coal mining machinery
-- Excavator, Bulldozer, tractor, cranes, forklift, Heavy truck, backhoe
-- Undercarraige, hydraulic motor, travel motor, gearbox axle, wheel hub,tunneling
-- For OEM Komatsu, CAT, Shantui, Sany, Kubota, Kobelco, JCB, Volvo, Hitachi,
John Deere, Fiat Allis, New Holland, Commins, Terex, BOB-Cat... etc.

There are 2 materials:
Steel Gcr15 / 100cr6 and cast iron 15Cr3Mo
METAL Steel Gcr15/ 100Cr6 Cast 15Cr3Mo
Surface smoothness/roughness: ≤Ra0.2μm 6.3-12.5μm
Work face smoothness ≤Ra0.15μm ≤Ra0.1μm
Pressure loading ≤0.15MPa ≤0.3 MPa
Forging line speed 2m/s 3m/s
Temperature range —100~200°C -40~160°C
Hardness (HRC) 58-62 60-68
Lifetime (Hours) 3000 5000
NBR60, silicone and FKM rubber rings are offered
Material NBR60 SILICONE FKM
Hardness 60°~ 65° 60°~ 65° 72°~ 78°
Minimum tensile strength 11MPa 10.6Mpa 11MPa
Minimum elongation at break 300% 400% 260%
Permanent deformation 12% 8% 25%
Temperature range -40℃- +120℃ -49℃- +230℃ -30℃- +250℃
Specific Gravity(g/cm3) 1.25 1.2 1.8

Method of installation:

1.Usingspecialized equipment installation: The pressure will apply to the O-ringdirectly. As shown, the special tool is placed between the metal hole ring and the rubber ring, towards the seat hole, the rubber ring is pressed evenly into the hole.

2. Other methods: An auxiliary O-ring is fixed between the sealing surface of the floating oil seal and the C-ring (as shown). The floating oil seal ring is applied equally by pressure and auxiliary O-ring braces. Sealing the O-ring to ensure other mounting positions.

CAT Duo Cone Seal Replacement , Forging 8P-1251 O Ring Oil Seal

CAT Duo Cone Seal Replacement , Forging 8P-1251 O Ring Oil Seal

OEM covers

Model OEM Codes
Komatsu

195-30-00302, 154-30-00831 , 141-30-00616 , 150-27-00017, 207-27-0001, 130-27-00140, 130-27-0001, 14X-27-00101, 150-27-0002, 170-27-00020, 423-33-00020, 17M-27-00101, 287-33-00010, 425-33-00110, 568-33-00016, 209-27-00160, 141-27-00010, 130-27-B0100, 180-27-00021, 175-27-00121,

140-30-00040 , 130-27-00010 , 150-30-00035 , 170-27-00010...
Kobelco

R45P0018D, R45P0018D6, 45P0018D18, R45P00018D9,R45P0018D25,

R45P0018D12, R45P0018D27, R45P0018D13, R45P0018D14, R45P0018D15, R45P0018D16, R45P0018D18, R45P0018D29, R45P0018D21, YN53D00008S023, R45P0018D22, R45P0018D28...
CAT 1M8746, 9W7225, 9W7220, 8E5609, 8E 5610, 9W 7232, 2M 2858, 9W 7223, 9W 6649, 1M 8747, 9W 6647, 9W 6648, 6V2733, 9W7233,1M 8746, 2P 3395, 1P 7249, 5P 7147, 3P 0433, 5P 9120, 9W 6645,9W 6666, 5K 1078, 9G 5314, 5M 1176, 9W 6674, 9G 5317, 9W7201...
Hitachi

4283635, 4176379 , 4177260 , 4082631, 4642180, 4110363, ES-110,

4110362, 4153732, 4508193, ES-209, 4114753, 4514259, ES-250, 4179741, 4066695, 4138544, 4350347, 4082698, ES-56, ES-64...

Advantage
1, Competitive Pricing, 30% - 50% lower than the original parts
2, ISO certified Products
3, Experienced team with years of knowledge
4, In-House engineering and Design Capabilities
5, Just-in-time Inventory Programs for OEM/OES
6, MOQ 1 Set
