2438U568R100 Piston Rod Seal Repair Kit For Kobelco K909-A K909A

Product Categories
Guangzhou Sonka Engineering Machinery Co., Ltd.
Contact Now

2438U568R100 Piston Rod Seal Repair Kit For Kobelco K909-A K909A

Brand Name : HQPA/OEM

Model Number : 2438U568R100 Piston Rod Seal Repair Kit

Certification : ISO9001

Place of Origin : CHINA(MAINLAND)

MOQ : Negotiable

Price : negotiation

Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P

Supply Ability : 500 Sets per Week

Delivery Time : 3-5 days after payment received(public holiday excluded)

Packaging Details : PP bag inside, carton box outside

Product : 2438U588R110 2438U588R120 Piston Rod Seal Repair Kit

Part Number : 2438U568R100 2438U568R110 2438U568R120

Fit for model : Kobelco K909-A K909A K907 K907LC

Group : Piston Rod Seal Repair Kit

Loading Port : HUAGNPU,China (Mainland)

Packing : Neutral packing / HQPA packing

Contact Now

2438U568R100 Piston Rod Seal Repair Kit for Kobelco K909-A K909A

1.Product Description:

Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power.


2.General Product Information:

2438U568R100 Piston Rod Seal Repair Kit for Kobelco K909-A K909A
Brand Name HQPA/OEM
Product Name 2438U568R100 Piston Rod Seal Repair Kit for Kobelco K909-A K909A
Product style Piston Rod Seal Repair Kit / Rod Seal Repair Kit
Part No. 2438U568R100 2438U568R110 2438U568R120
Related parts: Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
Application Kobelco K909-A K909A K907 K907LC K909LC
MOQ 1 PC
Condition 100% New
Package Inner-Plastic Bag; Outer -Standard Carton Box.
Payment Western Union, L/C, T/T, MoneyGram, D/A, D/P etc.
Departure ports Huangpu(Guangzhou), China (Mainland)
Delivery time 3-5 days after payment received(public holiday excluded)
Place of origin China (Mainland)
Application Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

3. Fit Model

Part Number: 2438U568R100
Group: Piston Rod Seal Repair Kit
Fit for model: Kobelco K909-A K909A K907 K907LC K909LC

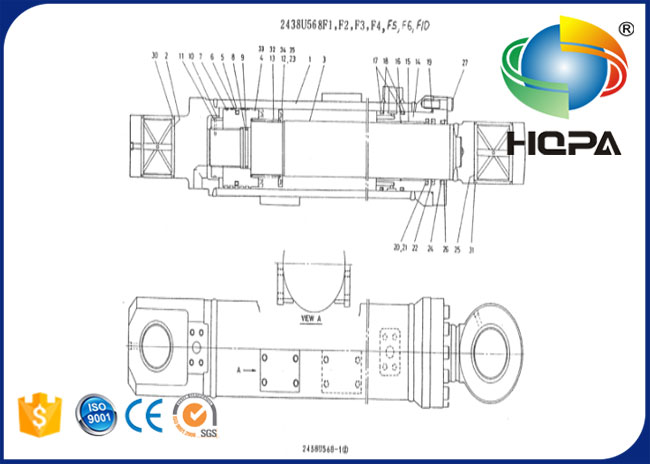

4.Related parts

2438U568R100 Piston Rod Seal Repair Kit For Kobelco K909-A K909A

Part No Parts name Part No Parts name
2438U568F5 CYLINDER, BUCKET ASSY, CONSISTS OF THE FOLLOWING PARTS 2438U568F6 CYLINDER
2438U568F10 CYLINDER ASSY, BUCKET, CONSISTS OF THE FOLLOWING PARTS 2438U568S2 BUSHING
2438U568S3 ROD R45P0049D3 SEAL
R45P0051D5 O-RING R45T0014D4 WEAR RING
ZD12G06000 O-RING,59.40mm ID x 65.60mm OD x 3.10mm 2438U568S9 BACK-UP RING
2438U308S44 NUT 2438U308S45 LOCKING RING
2438U568S14 COVER 2438U308S15 BUSHING
2438U308S16 CLIP ZD12P12000 O-RING
2438U308S18 BACK-UP RING 2438U308S39 O-RING
R45P0050D10 SEAL R45P0050D21 O-RING
2438U322S33 PACKING 2438U568S25 BUSHING
2438U282S23 SNAP RING ZS23C14055 SCREW,Hex Socket Head, M14 x 55mm
2438U568S28 TUBE, CYLINDER 2438U568S29 ROD
2445R138D6 SEAL,70mm ID x 85.3mm OD x 4mm Thk 2445R138D7 SEAL,80mm ID x 95mm OD x 4mm Thk
2438U568S32 SPRING F10 ONLY 2438U568S33 MANIFOLD PISTON, F10 ONLY
2438U568S34 PLATE F5 ONLY 2438U568S35 PLATE F6 & F10 ONLY
2438U568S36 SEAL 2438U568R120 SEAL KIT
2438U568F1 CYLINDER, BUCKET ASSY, CONSISTS OF THE FOLLOWING PARTS 2438U568F2 BUCKET CYLINDER
2438U568F3 CYLINDER, BUCKET ASSY, CONSISTS OF THE FOLLOWING PARTS 2438U568F4 CYLINDER, BUCKET ASSY, CONSISTS OF THE FOLLOWING PARTS
2438U568S1 TUBE 2438U568S2 BUSHING
2438U568S3 ROD 2438U308S4 PISTON
R45P0049D3 SEAL R45P0051D5 O-RING
R45T0014D4 WEAR RING ZD12G06000 O-RING,59.40mm ID x 65.60mm OD x 3.10mm
2438U568S9 BACK-UP RING 2438U308S44 NUT
2438U308S45 LOCKING RING 2438U308S12 PLATE
2438U568S13 SPRING 2438U568S14 COVER
2438U308S15 BUSHING 2438U308S16 CLIP
ZD12P12000 O-RING 2438U308S18 BACK-UP RING
2438U308S39 O-RING R45P0050D10 SEAL
45Z91D126 O-RING 2438U322S33 PACKING
2438U322S31 PLATE F1 ONLY 2438U552S24 SEAL
2438U568S25 BUSHING 2438U282S23 SNAP RING
ZS23C14055 SCREW,Hex Socket Head, M14 x 55mm 2445R138D6 SEAL,70mm ID x 85.3mm OD x 4mm Thk
2445R138D7 SEAL,80mm ID x 95mm OD x 4mm Thk 2438U568S32 SPRING F3 & F4 ONLY
2438U568S33 MANIFOLD PISTON, F3 & F4 ONLY 2438U568S34 PLATE F3 ONLY
2438U568S35 PLATE F4 ONLY 2438U568R100 REPAIR KIT
2438U568R110 REPAIR KIT

5. Related:

All the picture is just for your reference.

We can provide service according to the client's requirements!

We always promise to offer excellent products as well as satisfactory service to our clients all over the world.

If you have any problems with details please contact us, we can supply different pressure spare parts with different models as you like.

Welcome to contact us, we can provide high quality and the best price!

2438U568R100 Piston Rod Seal Repair Kit For Kobelco K909-A K909A2438U568R100 Piston Rod Seal Repair Kit For Kobelco K909-A K909A2438U568R100 Piston Rod Seal Repair Kit For Kobelco K909-A K909A2438U568R100 Piston Rod Seal Repair Kit For Kobelco K909-A K909A2438U568R100 Piston Rod Seal Repair Kit For Kobelco K909-A K909A2438U568R100 Piston Rod Seal Repair Kit For Kobelco K909-A K909A
